EMC輔助●EMC濾波器(板載式)

特點及應用:

1.超寬電壓調節,可適應2.8~5V電壓的需求;

2.超寬工作溫度(-40℃~70℃);

3.超薄, 超窄設計,節省空間;

4.輸出保護功能:輸出短路/過載/過壓;

5.全部使用105℃長壽命電解電容;

6.海拔＞5000m工作設計;

7.100%滿載老化測試;

8.紋波小,良好的EMC特性.

型號標題	功率	輸入電壓	輸出電壓	輸出路數	效率 %	PFC	尺寸
PSL15-12A-R	15W	90~264Vac	12V	1	76	無	109.45230mm
PSL25-12A-R	25W	90~264Vac	12V	1	81	無	109.45230mm
PSL40-12A	40W	90~264Vac	12V	1	81	無	12776.228mm
PSL60-12A	60W	90~264Vac	12V	1	80	無	12776.228mm
PSL70-12A-R	70W	90~264Vac	12V	1	86	無	12776.228mm
POE-U150S54.5C	150W	90~264Vac	54.5V	1	91	有	14376.230.5mm
POE-U160D12+48	150W	90~264Vac	12+48V	2	85	有	19959.639.6mm
POE-U280D54+12	280W	90~264Vac	53.5+12V	2	90	有	22010038mm
POE-U350D24+53.5	350W	90~264Vac	24+53.5V	2	90	有	22010038mm
POE-U400D54+12A	400W	90~264Vac	53.5+12V	2	90	有	22010038mm
POE-U450S54III	450W	90~264Vac	54V	1	90	有	217.512940.5mm
POE-U450D53.5+12VI	450W	90~264Vac	53.5+12V	2	90	有	22010038mm
POE-U530S54	500W	90~264Vac	54V	1	90	有	235.2101.538mm
GPM-U70S12FII	70W	90~264Vac	12V	1	90	無	15650.538mm
VAT-H200S-4.2-55L	200W	180~264Vac	3.0~5.1V	1	90	無	1655526.5mm
VAT-H200S-4.2-60L	200W	180~264Vac	4.1~5.1V	1	89	無	2086030mm
RG-PA150I-F	150W	90~264Vac	12V	1	88	有	206.550.540mm
VAT-UP200S-4.5-55L	200W	90~264Vac	2.8~5.1V	1	90	有	1655526.5mm
RG-PA300I-FII	300W	90~264Vac	12V+12V	2	89.5	有	20886.440.5mm
EPA10	500W	90~264Vac	53.5V	1	89	有	20812641.5mm
VAT-UP200S-5-60L-AII	200W	90~264Vac	4.1~5.1V	1	89	有	2086030mm
VAT-UP200S-4.2-19H-B	200W	90~264Vac	4.2V	1	91	有	1465519mm
EPA20A	1000W	90~264Vac	53.5V	1	93	有	20812641.5mm
EPA30	1800W	90~264Vac	53.5V	1	94	有	20812641.5mm

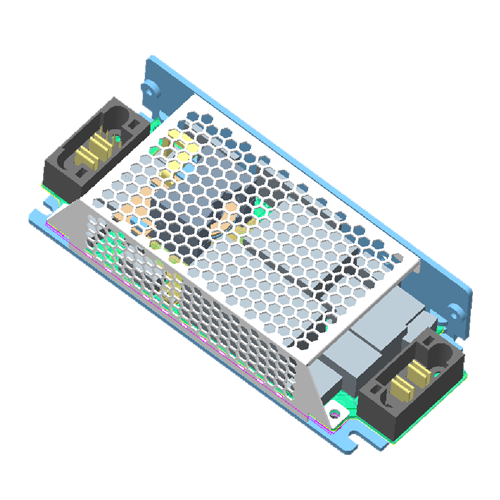

VAT-UP200-4.5-P-D	200W	90~264Vac	4.5V	1	87	有	139.55530mm
VAT-H300S-4.2-55L	300W	180~264Vac	3.3~5.1V	1	90	無	1805530mm
VAT-H300S-5-60L-A	300W	180~264Vac	4.1~5.1V	1	90	無	2086030mm
VAT-UP300S-4.6-55L-A	300W	90~264Vac	4.5V ,4.6V ,5V	1	90	有	1805530mm
VAT-UP300S-4.2-60L-A	300W	90~264Vac	3.3~5.1V	1	90	有	2086030mm

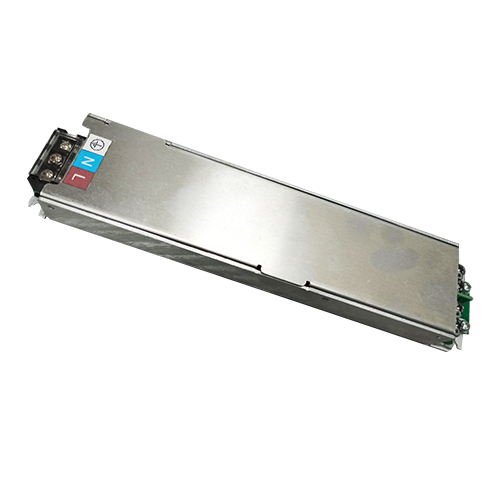

VAT-HP400S-5-46L	400W	180~264Vac	5V	1	89	有	2204626mm
VAT-H400S-4.5-60L	400W	180~264Vac	3.3~5.1V	1	89	有	2086030mm
VAT-UP400S-4.5-60L-B	400W	90~264Vac	4.1~5.1V	1	89	有	2356030mm
VAT260UP4.6AC	260W	90~264Vac	4.6V	1	91	有	165×55×23mm
GK-H240S12R24-B	240W	180~264Vac	12V ,24V	1	87%	無	1999950mm
CMG-H150D12G+24G	150W	180~264Vac	12V+24V	2	88	無	1599730mm
